Product Description
The latest Vomart automatic car wash technology raises the standard of non-contact car wash equipment. Focusing on increasing revenue and improving total cost of ownership, car wash systems can provide the industry’s best return on investment. Smart 360TM technology enables the car wash system to respond to the dynamic changes in the car wash process and “think about itself”, thereby increasing uptime and optimizing the car wash process. Significantly increased cleaning speed can increase vehicle throughput, shorten production lines and meet your customer needs. Simplified machine design and lower energy and utility usage reduce operating costs and make the car wash business more profitable.
Main features:
1. Intelligent unmanned system, self-service card payment system. 2. Smart 360 technology. 3. Intelligent chemical mixing system. 4. Innovative suspension system, no drag rail. 5. Unique embedded quick-drying system. 6. Digital voice security alarm system. 7. The self-check system is faulty. 8. One-button antifreeze system.
Features :
1）. High pressure pre-washing of chassis and wheels. Equipped with a unique chassis and fan hub washing function, 80 bar high-pressure water can effectively remove dirt on the chassis, sides of the body and wheels.
2) Intelligent 360-degree rotating arm, using high-precision batching technology to spray various washing chemicals. The measurement accuracy is 100%, and the ratio is adjustable. The use of high-precision chemical mixing system for car washing only requires 20 to 50 ml of pre-soaking, which saves materials and costs.
3)Intelligent 360-degree rotating arm, flush the body 360° with high-pressure water.
It can rotate 360° within 28 seconds, saving 50% of water and 60% of power. It can automatically detect the length and width ofthe vehicle. High pressure water up to 80bar can easily remove dirt.
Specification
|
Model:
|
ATO-VT-X7-360A (2021 NEW)
|
|
Equipment size:
|
L 7.5m; W 3.8m； H 3.35m
|
|
Site requirements:
|
L 8m*W 4m*H 3.5m Ground: hardening
|
|
Proportioning machine size:
|
800*450*1400（mm）
|
|
Wire requirements:
|
Three-phase five-wire (16 square international copper flexible wire)
|
|
Max washing ：
|
height: 2050(mm) width: 2500mm length: 5900mm
|
|
Power Requirements：
|
380V/25Kw,50Hz/60Hz
|
|
Water pump motor power：
|
18.5Kw
|
|
Fan motor power：
|
20.5Kw
|
|
Longitudinal motor power：
|
0.37Kw stepless frequency control
|
|
Transversal motor power：
|
0.75Kw digital drive motor
|
|
Rotary motor power：
|
0.75Kw digital drive motor
|
|
Liquid proportioning system motor power：
|
0.75kw
|
|
Central processor：
|
Industrial PLC embedded central processor+dual-coresystem
|
|
Drive System：
|
Promise frequency digital drive
|
|
Water Consumption：
|
About 200L
|
|
Single car wash time：
|
About 5-6 mins
|
|
Single power consumption：
|
About 1-1.5 Kwh
|
|
Single consumable quantity
|
About 50ml
|
|
wax consumption：
|
About 500-1000ml/Controllable
|
|
Applicable models：
|
Cars, vans, commercial vehicles
|
|
Flushing pressure：
|
80-100bar
|
|
Water pressure requirements：
|
1.4-3kg tap water pressure; 6-point diameter water pipe with a flow rate greater than 40L/min
|

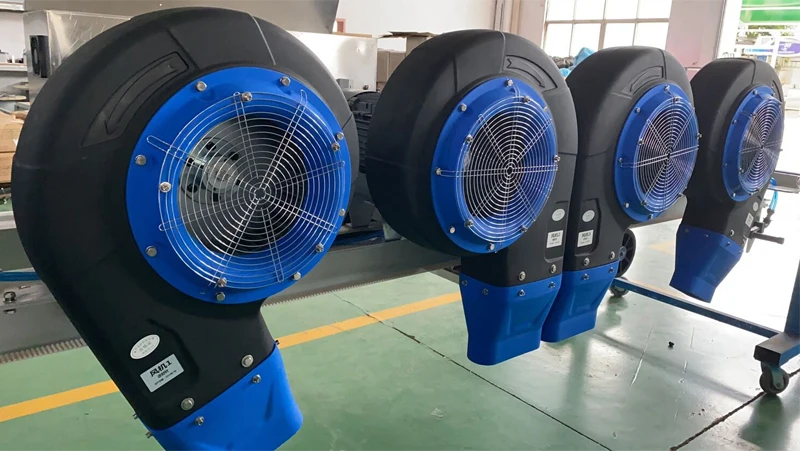

Unique embedded quick drying system.
The machine is equipped with four 5.5 kw motors in the car washer. The air flow is controlled by four cylindrical outlets. The first task is to blow off a bunch of winds, reduce the wind resistance of the
subsequent wind, and make the car surface dry. Other traditional types of fans increase wind speed, but when the car body is reached, the wind has been minimized. In fact, high-speed airflow is the best drying solution.
subsequent wind, and make the car surface dry. Other traditional types of fans increase wind speed, but when the car body is reached, the wind has been minimized. In fact, high-speed airflow is the best drying solution.
